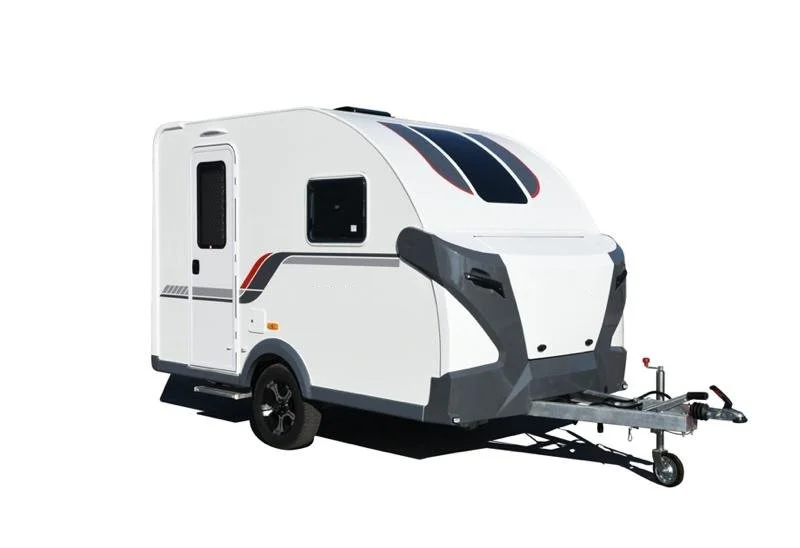

Caravan M330
-
Version: Standard
Model: left/right side door Overall size(mm): 4575 x 2005 x 2465mm
Body size(mm): 3300 x 1900 x 1850mm
Suspension: AL-KO 1.5T electric brake torsion axle
Coupler: 3.5T 50mm with hand brake
Wheels: 185R14LT tires with alloy rims and spare wheel under chassis(steel rim)
Tare Weight(kg): 750KG

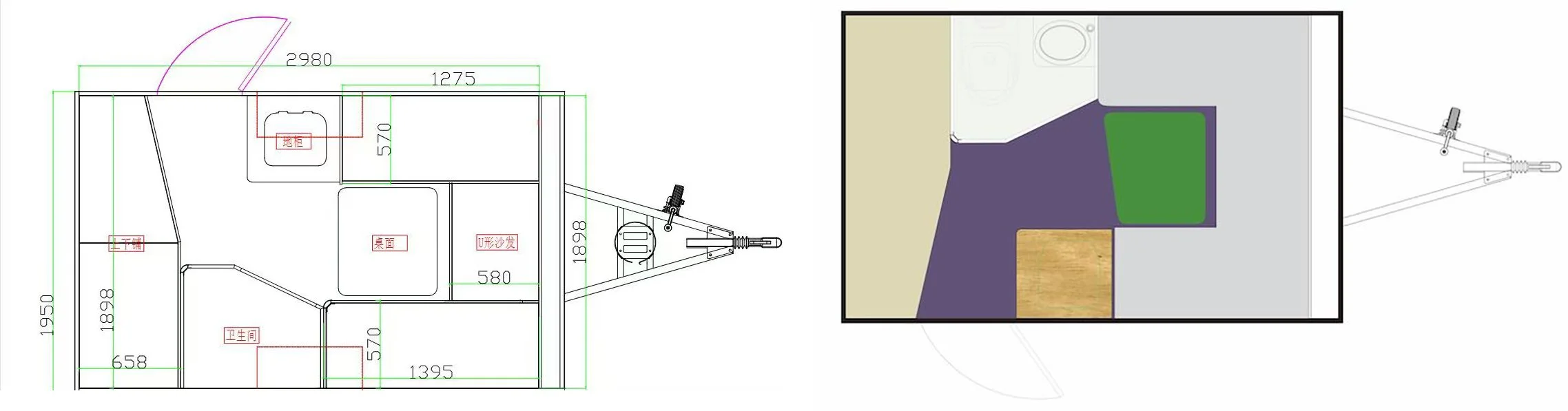

Layouts

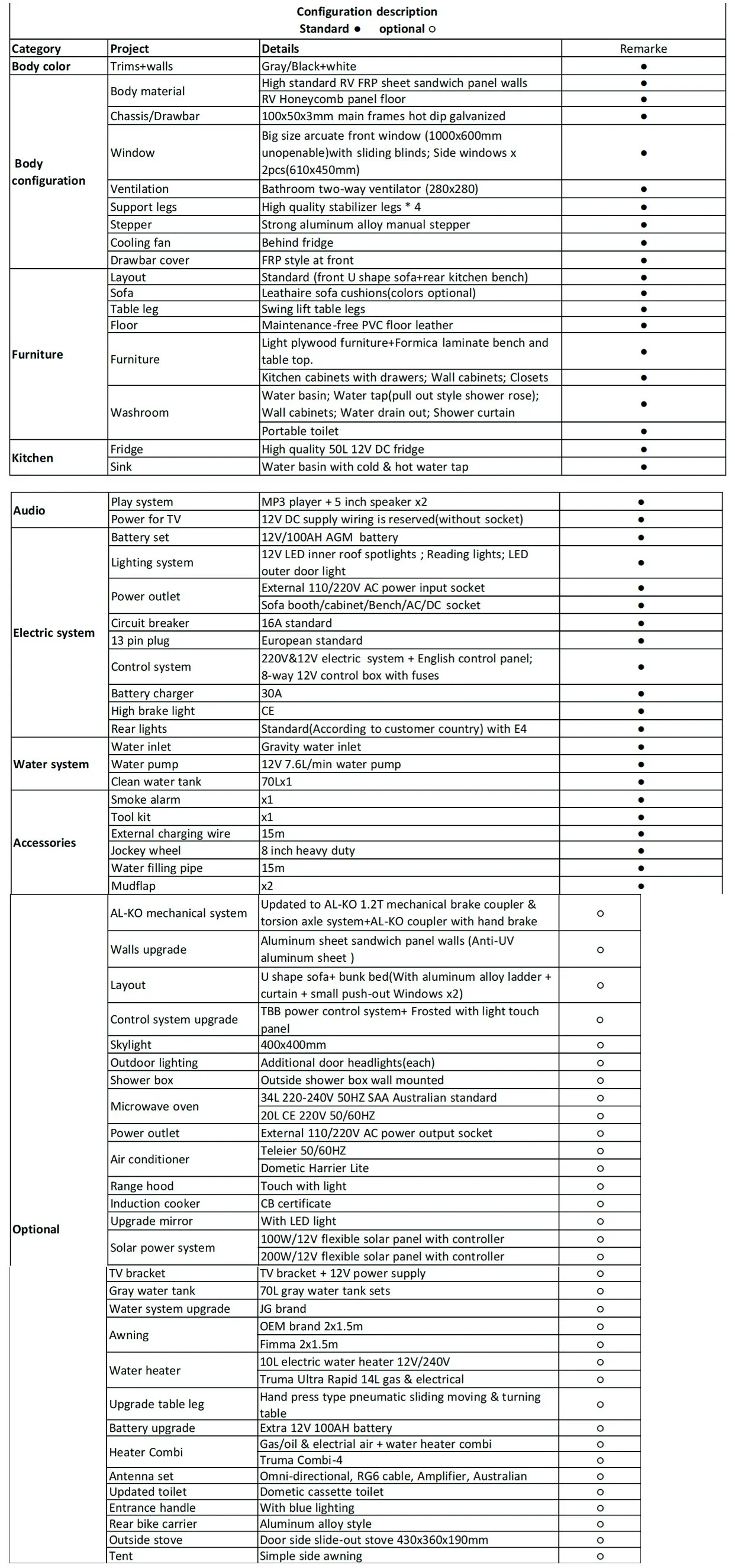

Configuration Description
| Category | Project | Details | Remarke |
| Body color | Trims-walls | Gray/Black-white | ● |
| Body configuration | Body material | High standard RV FRP sheet sandwich panel walls | ● |
| RV Honeycomb panel floor | ● | ||
| Chassis/Drawbar | 100x50x3mm main frames hot dip galvanized | ● | |

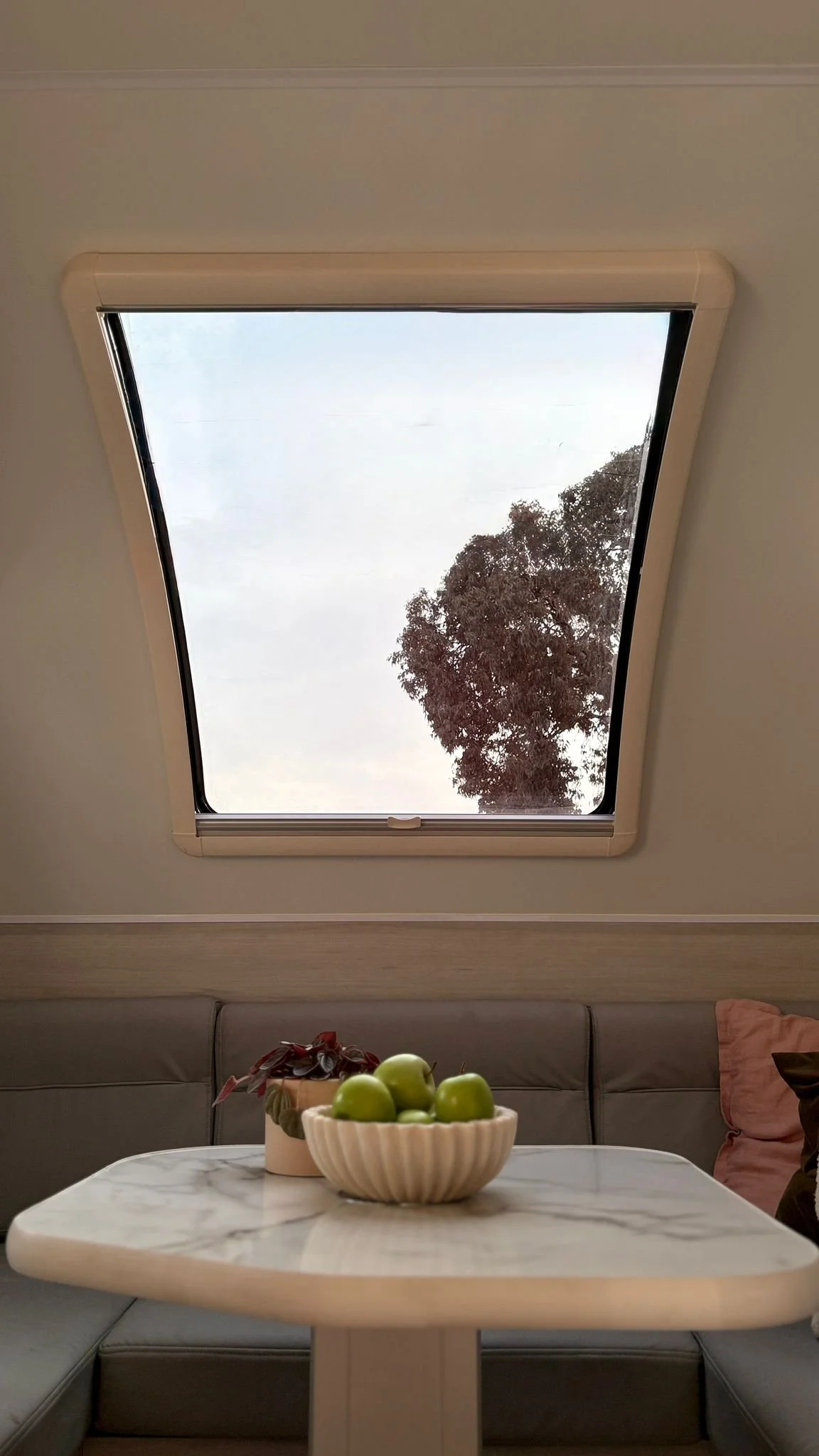

| Window | Big size acrurate front window (1000x600mm unopenable)with sliding blinds; Side windows x 2pcs(610x450mm) | ● | |
| Ventilation | Bathroom two – way ventilator (280×280) | ● | |
| Support legs | High quality stabilizer legs * 4 | ● | |
| Stepper | Strong aluminum alloy manual stepper | ● | |
| Cooling | Behind fridge | ● | |
| Cooling fan | RRP style at front | ● | |

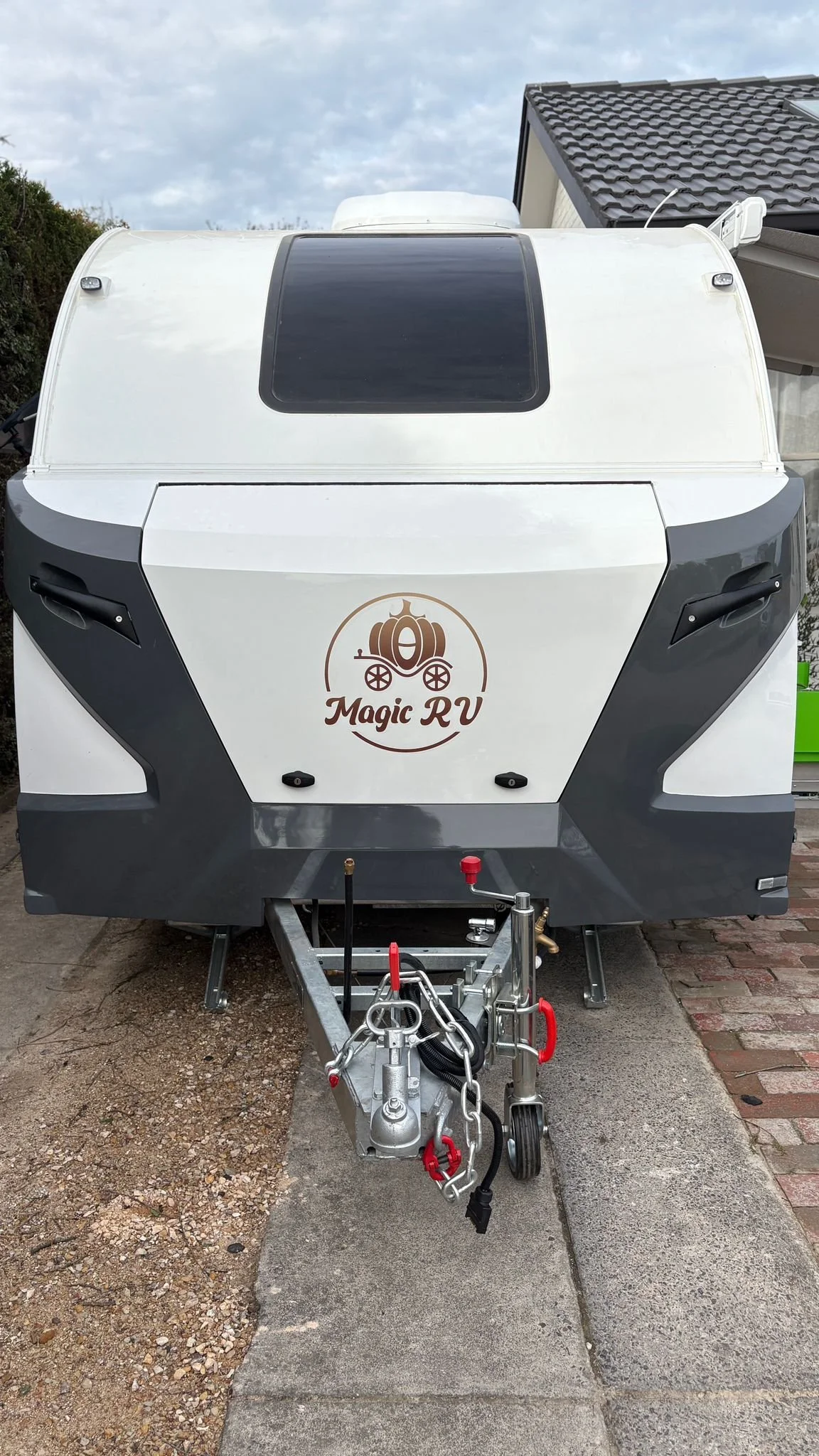

| Drawbar cover | RRP style (front U) | ● | |

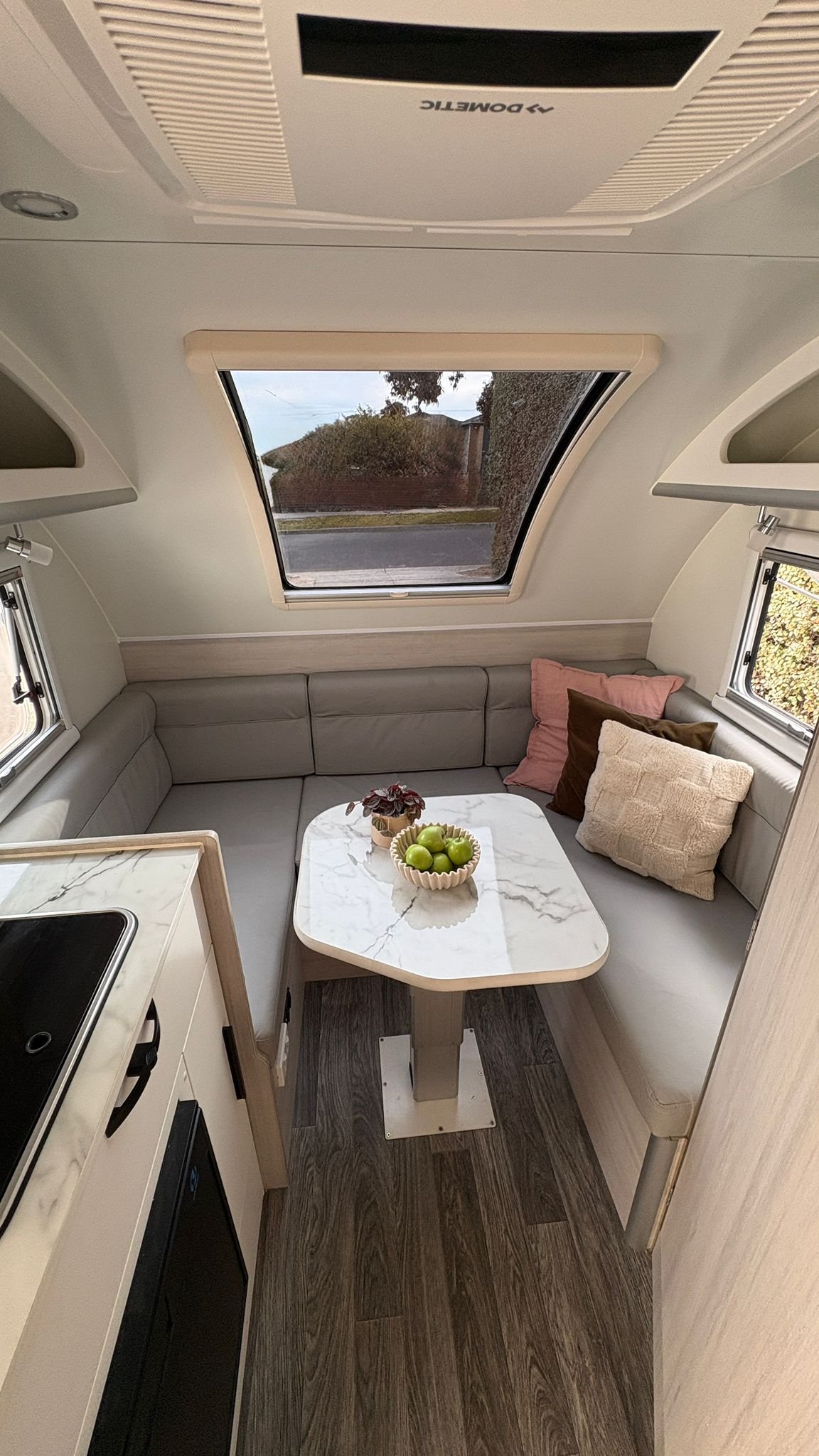

| Furniture | Layout | Standard (front U shape sofa+rear kitchen bench) | ● |
| Sofa | Leathaire sofa cushions(colors optional) | ● | |
| Table leg | Swing lift table legs | ● | |
| Floor | Maintenance – free PVC floor leather | ● | |
| Furniture | Light plywood furniture+Formica laminate bench and table top. | ● | |
| Kitchen cabinets with drawers; Wall cabinets; Closets | ● | ||

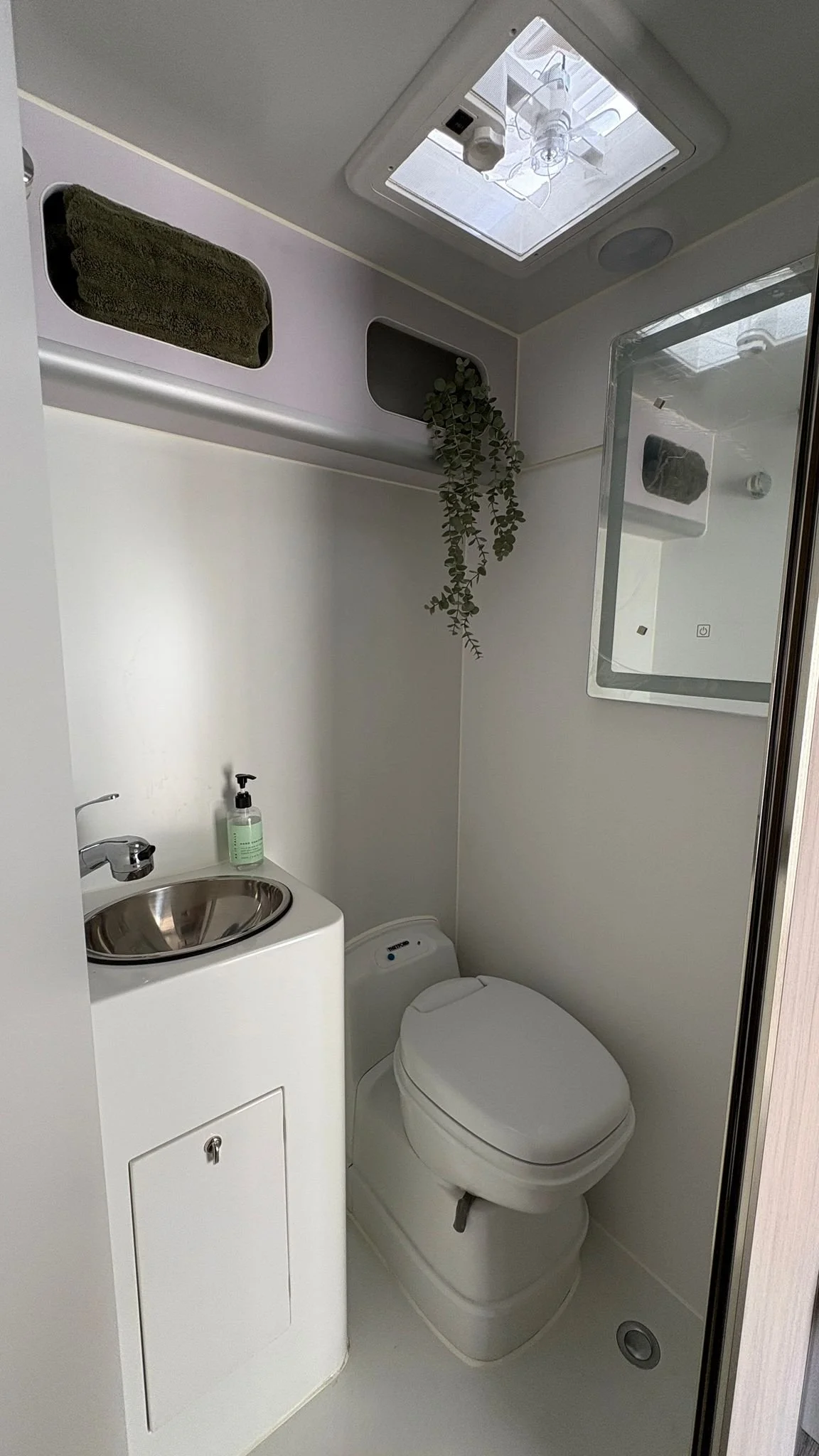

| Washroom | Water basin; Water tap(pull out style shower rose); Wall cabinets; Water drain out; Shower curtain | ● | |
| Portable toilet | ● | ||

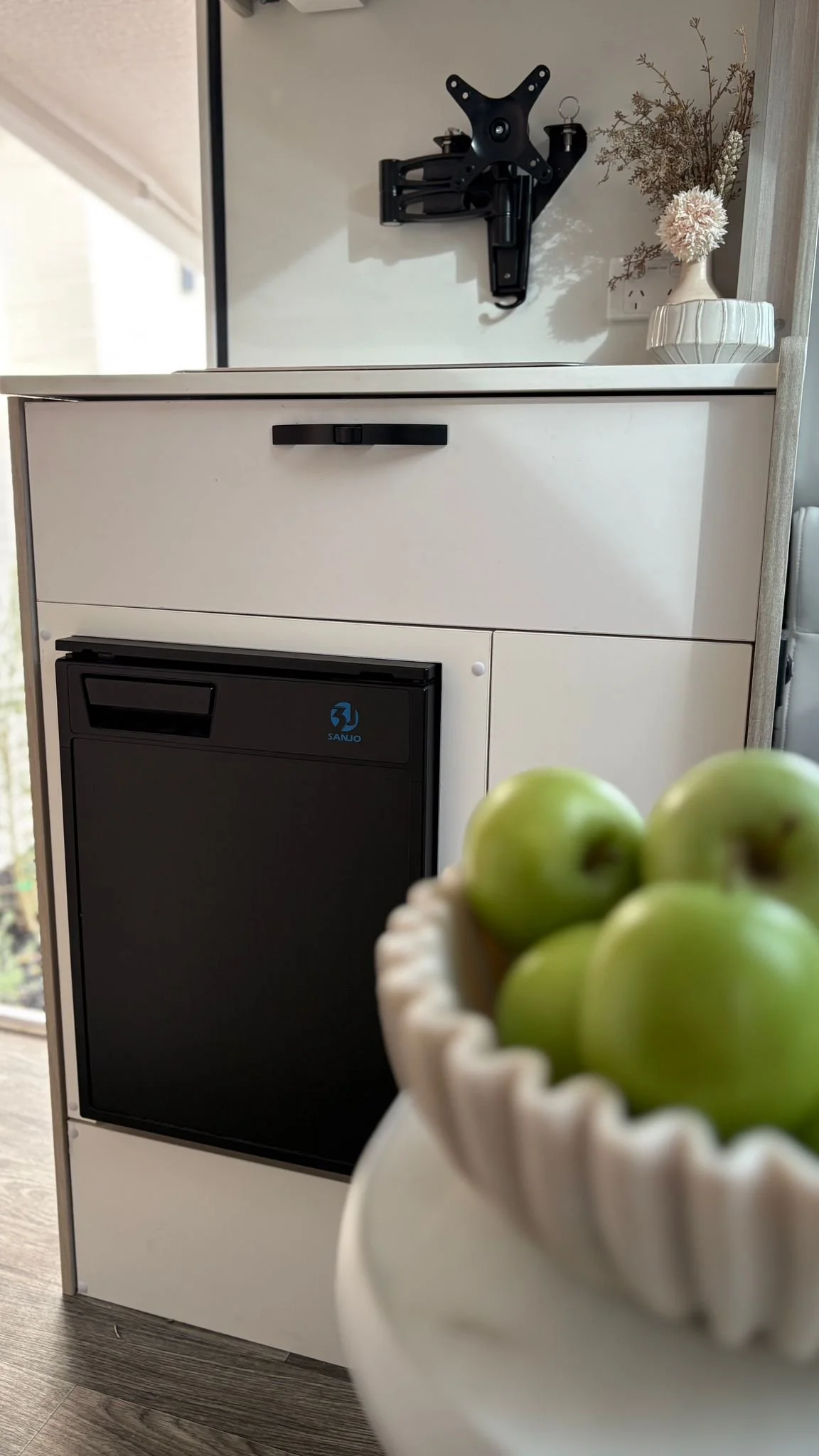

| Kitchen | Fridge | High quality 50L 12V DC fridge | ● |
| Sink | Water basin with cold & hot water tap | ● | |
| Audio | Play system | MP3 player + 5 inch speaker x2 | ● |
| Power for TV | 12V DC supply wiring is reserved(without socket) | ● | |
| Electric system | Battery set | 12V/100AH AGM battery | ● |
| Lighting system | 12V LED inner roof spotlights ; Reading lights; LED outer door light | ● | |
| Power outlet | External 110/220V AC power input socket | ● | |
| Sofa booth/cabinet/Bench/AC/DC socket | |||
| Circuit breaker | 16A standard | ● | |
| 13 pin plug | European standard | ● | |
| Control system | 220V&12V electric system + English control panel; | ● | |
| 8 – way 12V control box with fuses | |||
| Battery charger | 30A | ● | |
| High brake light | CE | ● | |
| Rear lights | Standard(According to customer country) with E4 | ● | |
| Water system | Water inlet | Gravity water inlet | ● |
| Water pump | 12V 7.6L/min water pump | ● | |
| Clean water tank | 70Lx1 | ● | |
| Accessories | Smoke alarm | x1 | ● |
| Tool kit | x1 | ● | |
| External charging wire | 15m | ● | |
| Jockey wheel | 8 inch heavy duty | ● | |
| Water filling pipe | 15m | ● | |
| Mudflap | x2 | ● | |
| Optional | AL – KO mechanical system | Updated to AL – KO 1.2T mechanical brake coupler & torsion axle system – AL – KO coupler with hand brake | ○ |
| Walls upgrade | Aluminum sheet sandwich panel walls (Anti – UV aluminum sheet) | ○ | |

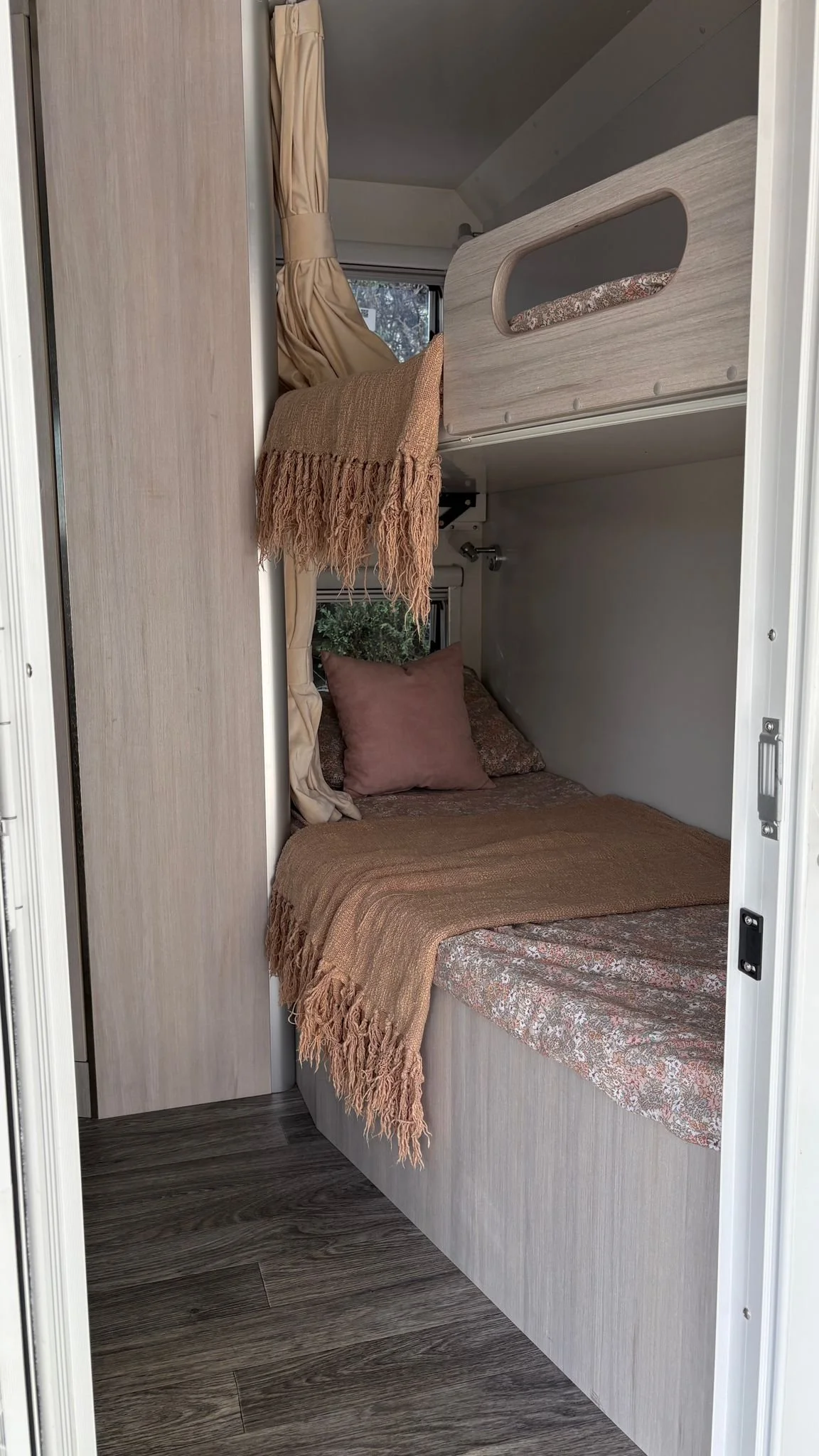

| Layout | U shape sofa + bunk bed(With aluminum alloy ladder + curtain + small push – out Windows x2) | ○ | |
| Control system upgrade | TBB power control system+Frosted with light touch panel | ○ | |
| Skylight | 400x400mm | ○ | |
| Outdoor lighting | Additional door headlights(each) | ○ | |

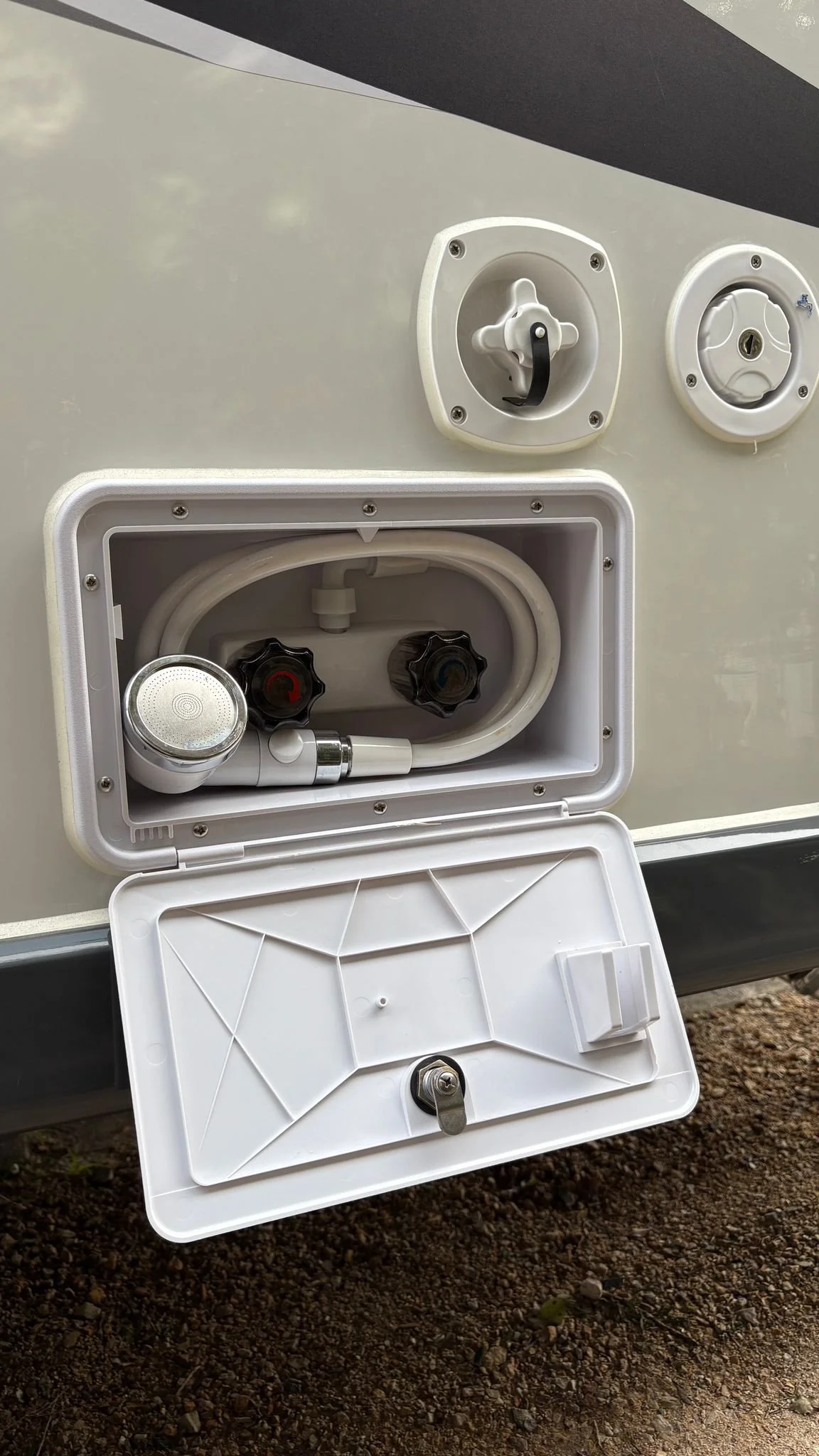

| Shower box | Outside shower box wall mounted | ○ | |

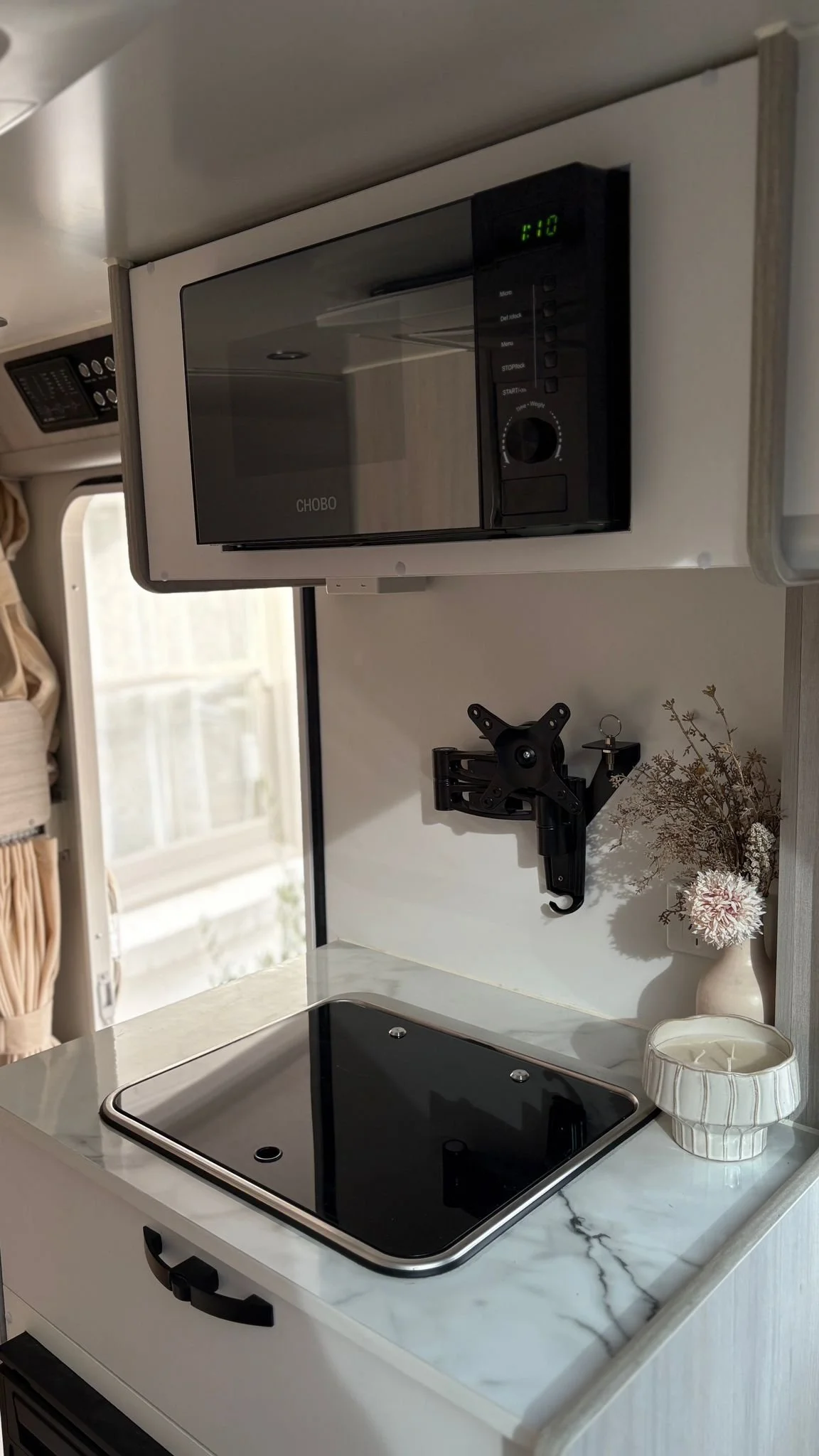

| Microwave oven | 34L 220 – 240V 50HZ SAA Australian standard | ○ | |
| 20L CE 220V 50/60HZ | ○ | ||
| Power outlet | External 110/220V AC power output socket | ○ | |
| Air conditioner | Teleier 50/60HZ | ○ | |
| Dometic Harrier Lite | ○ | ||
| Range hood | Touch with light | ○ | |
| Induction cooker | CB certificate | ○ | |
| Upgrade mirror | With LED light | ○ | |
| Solar power system | 100W/12V flexible solar panel with controller | ○ | |
| 200W/12V flexible solar panel with controller | ○ | ||
| TV bracket | TV bracket + 12V power supply | ○ | |
| Gray water tank | 70L gray water tank sets | ○ | |
| Water system upgrade | JG brand | ○ | |

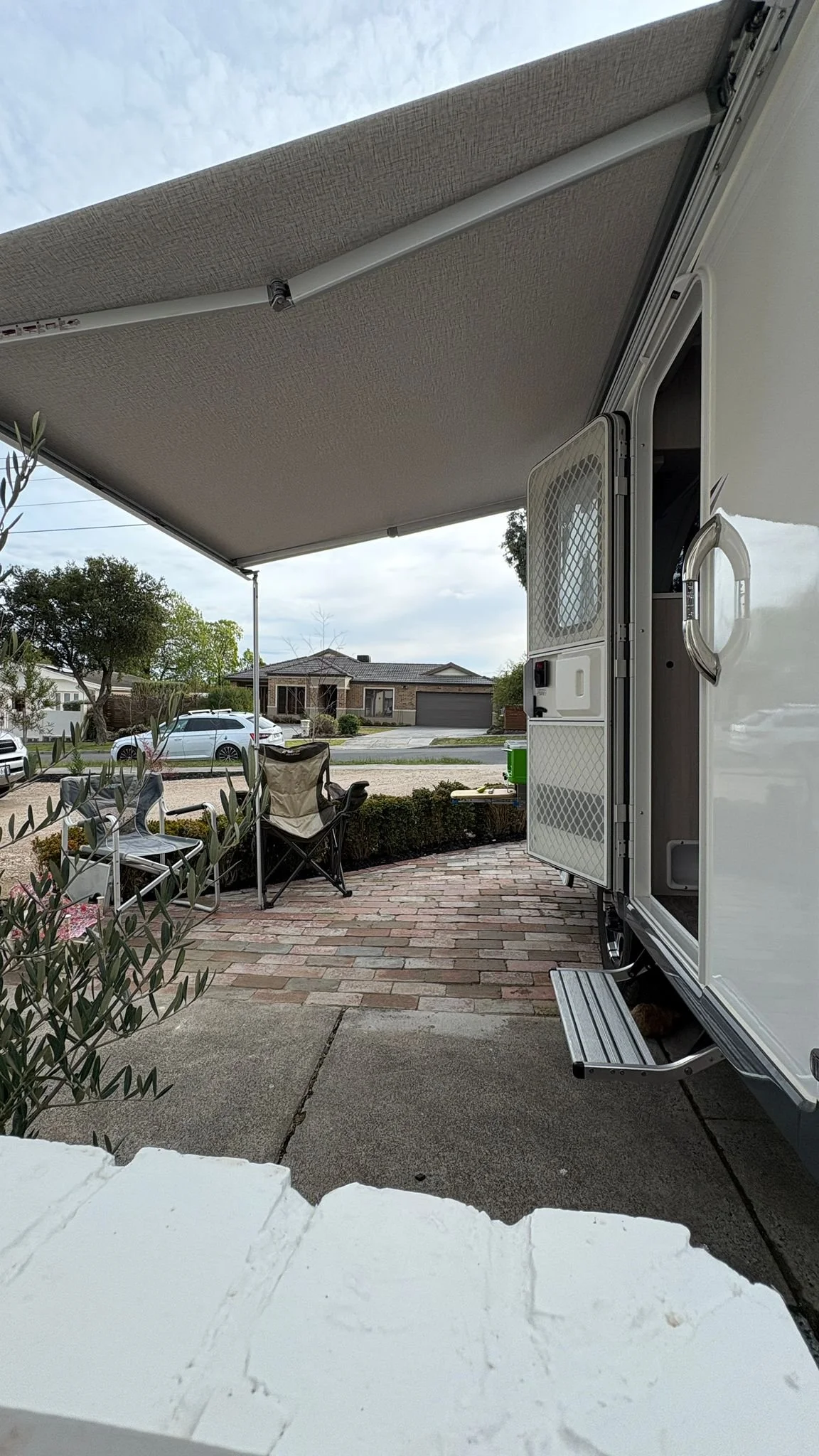

| Awning | OEM brand 2×1.5m | ○ | |
| Fimma 2×1.5m | ○ | ||
| Water heater | 10L electric water heater 12V/240V | ○ | |
| Truma Ultra Rapid 14L gas & electrical | ○ | ||
| Upgrade table leg | Hand press type pneumatic sliding moving & turning table | ○ | |
| Battery upgrade | Extra 12V 100AH battery | ○ | |
| Heater Combi | Gas/oil & electrical air + water heater combi | ○ | |
| Truma Combi – 4 | ○ | ||
| Antenna set | Omni – directional, RG6 cable, Amplifier, Australian | ○ | |
| Updated toilet | Domestic cassette toilet | ○ | |
| Entrance handle | With blue lighting | ○ | |
| Rear bike carrier | Aluminum alloy style | ○ | |

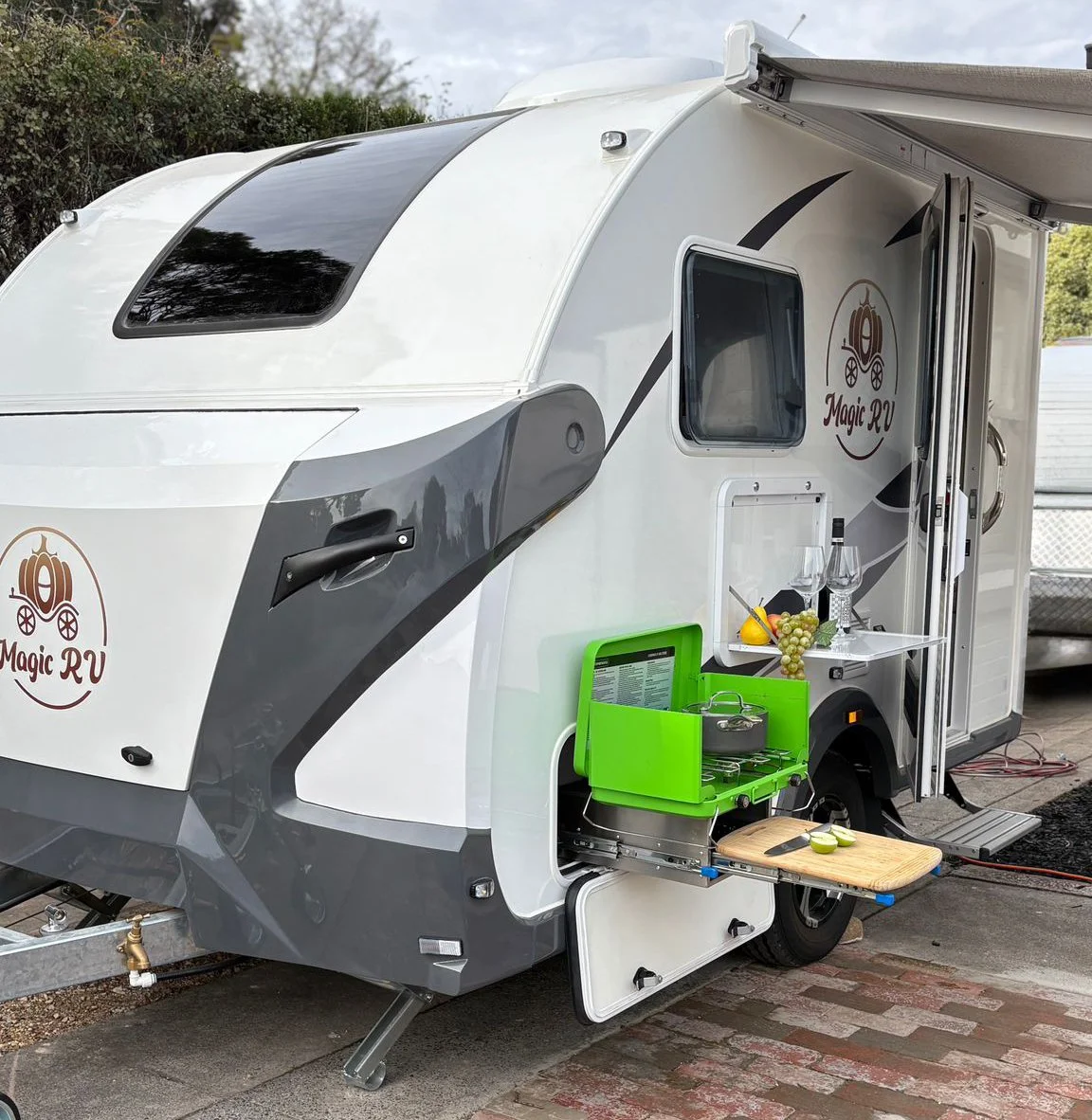

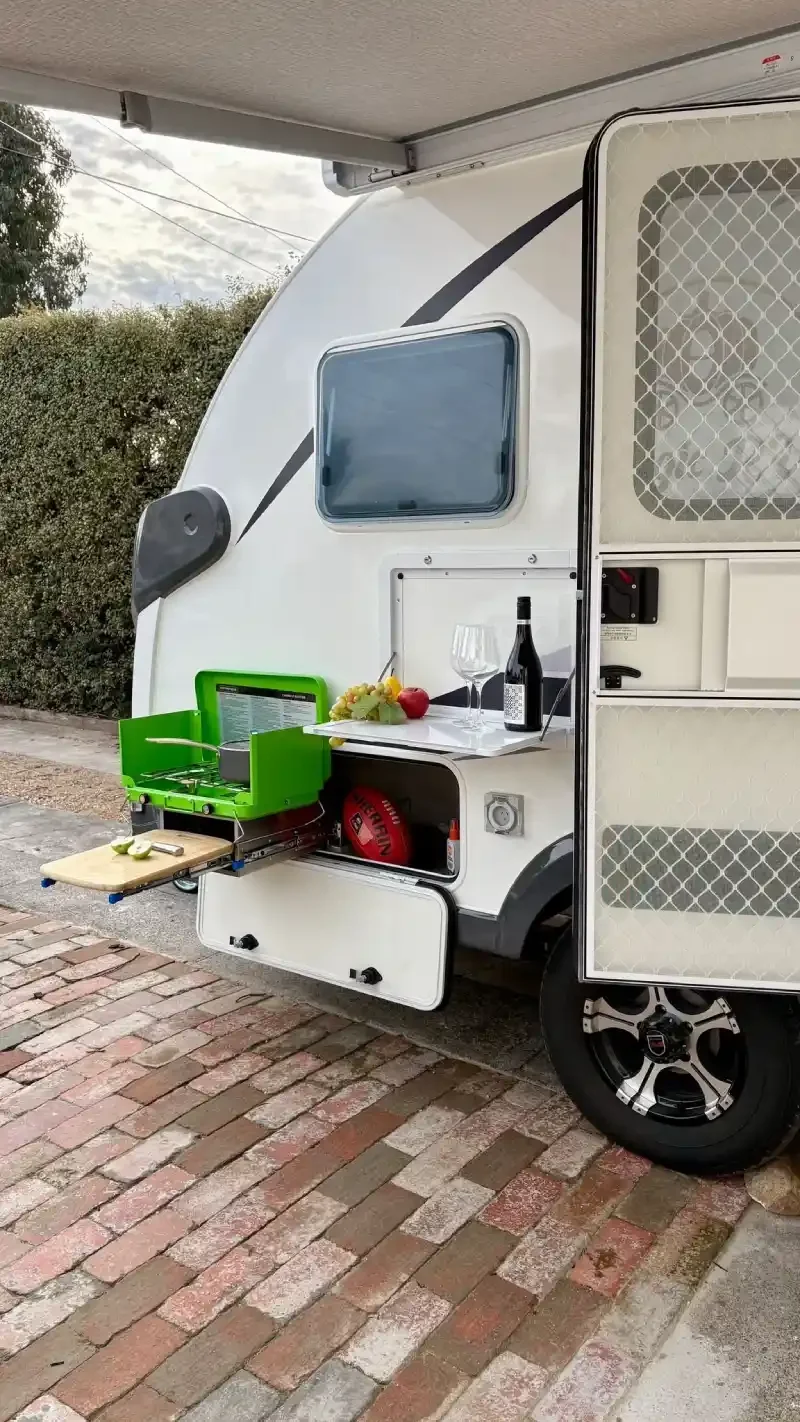

| Outside stove | Door side slide – out stove 430x360x190mm | ○ | |
| Tent | Simple side awning | ○ |
